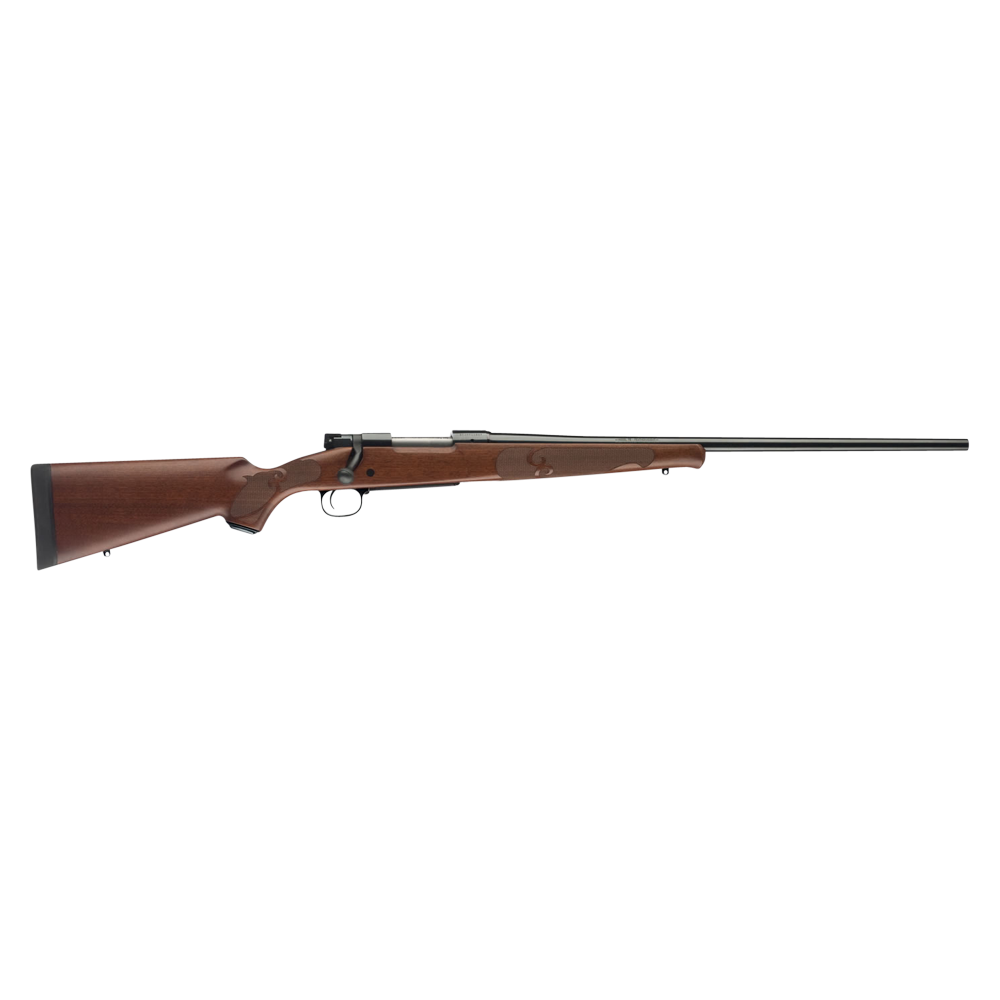

The legendary handling and quickness of the Model 70 Featherweight is justly famous among hunters everywhere.
The Model 70 action offers Pre-’64 style Controlled Round Feeding, a Three-Position Safety and is highlighted by a jeweled bolt body with knurled bolt handle. Inside is the M.O.A. Trigger System, the finest trigger ever offered in a bolt-action with zero take up, zero creep and zero overtravel. Like the original Featherweight, the angled comb Grade I walnut stock still features the Schnabel fore-end and satin finish with elegant cut checkering. A premium Pachmayr® Decelerator® pad helps soak up felt recoil. It’s available in the most popular long and short action calibers, including WSM chamberings.
Here are more details on the legendary Model 70 design.
The Model 70 still has the famous 3-position safety which is convenient to operate with the thumb of your firing hand, lifting the firing pin away from the sear. When the safety is in the intermediate or middle position, the action can still be operated, allowing unfired cartridges to be cycled with the safety on. It's smooth to engage and easily identifies the safety status of the rifle.
A Blade-Type Ejector gives you full control when ejecting a fired case. If you pull the bolt back slowly, the empty case doesn't fly anywhere, so you can catch it in your hand and the case is not damaged as it hits the ground. If you pull the bolt back quickly, it ejects the cartridge with more force, throwing it well clear of the action.
The forged steel receiver starts as a forged from a solid block of steel. (What could be stronger?) This is expensive to do, but the regal Model 70 is worth it. Each finished forging is precisely machined, creating a strong, stiff and solid receiver that resists flexing and delivers uncanny accuracy. The bottom profile of this receiver is flat to offer greater surface area for bedding. It is bedded with a two-part epoxy in two places, at the front and rear to keep things from shifting around inside the stock during firing. Why all this trouble and time? So pinpoint accuracy is preserved.
If there were a single feature responsible for the Model 70 being known as the "Bolt-Action Rifle of the Century," it would be the classic Controlled Round Feed (CRF) bolt design. This is a massive claw extractor that smoothly slips onto and secures about one-quarter of the base of the cartridge. This exerts full control over the cartridge from the time it leaves the magazine, as it enters the chamber, gripping tightly until the cartridge is fully ejected. This design also allows an unfired cartridge to be extracted even if it is not yet fully chambered. It's another feature found on the Model 70.
Most rifles have a recoil lug that is installed between the barrel and the action, much like a washer on a bolt. It is a metal piece that extends below the receiver and fits into a matching recess in the stock. It helps spread out the hammering effects of recoil across a wider surface so the rifle won't be damaged. The recoil lug in the Model 70 is not added during assembly. It's forged and machined as part of the receiver. This allows the barrel to be trued in perfect alignment to the front ring of the receiver for greater accuracy. There is nothing to move or shift the barrel out of alignment, ever.
A rifle is not worth a grain of powder if its barrel is junk, either from inferior steel, poor workmanship or poor fit. If you know how serious a rifle barrel is to accuracy, do a little research on Cold Hammer-Forged, Free-Floating Barrels. Every Model 70 barrel is cold hammer-forged from a solid blank of high-grade steel, shaped by heavy, massive rotary hammers over a mandrel (a metal bar that serves as a core around which steel is forged and shaped). After this, each barrel is stressed-relieved to ensure accuracy stays straight, even during the heat of rapid firing.
Free-floating a barrel in the stock means no part of the forearm area touches the barrel. The slightest pressure from the forearm as it cradles the barrel can adversely influence accuracy. Try pulling a dollar bill under your current rifle's barrel. Does it slip all the way to the receiver without hangup? If not, you're missing the accuracy of the Model 70's free-floating barrel, and probably missing your target, too!
You can expect 1 MOA accuracy for three-shot groups from a Model 70 using premium ammo and quality optics under suitable weather and range conditions.
|Calibre / Chamber||30-06Sprg|
|Barrel||Blued, cold hammer forged, free floated|
|Magazine Capacity||5 Round|
|Safety||Three position safety|
|Sights||Drilled and tapped for scope mounts|
|Recoil Pad||Pachmayr® Decelerator® pad|
|Drop of Comb||13mm|
|Drop at Heel||19mm|
