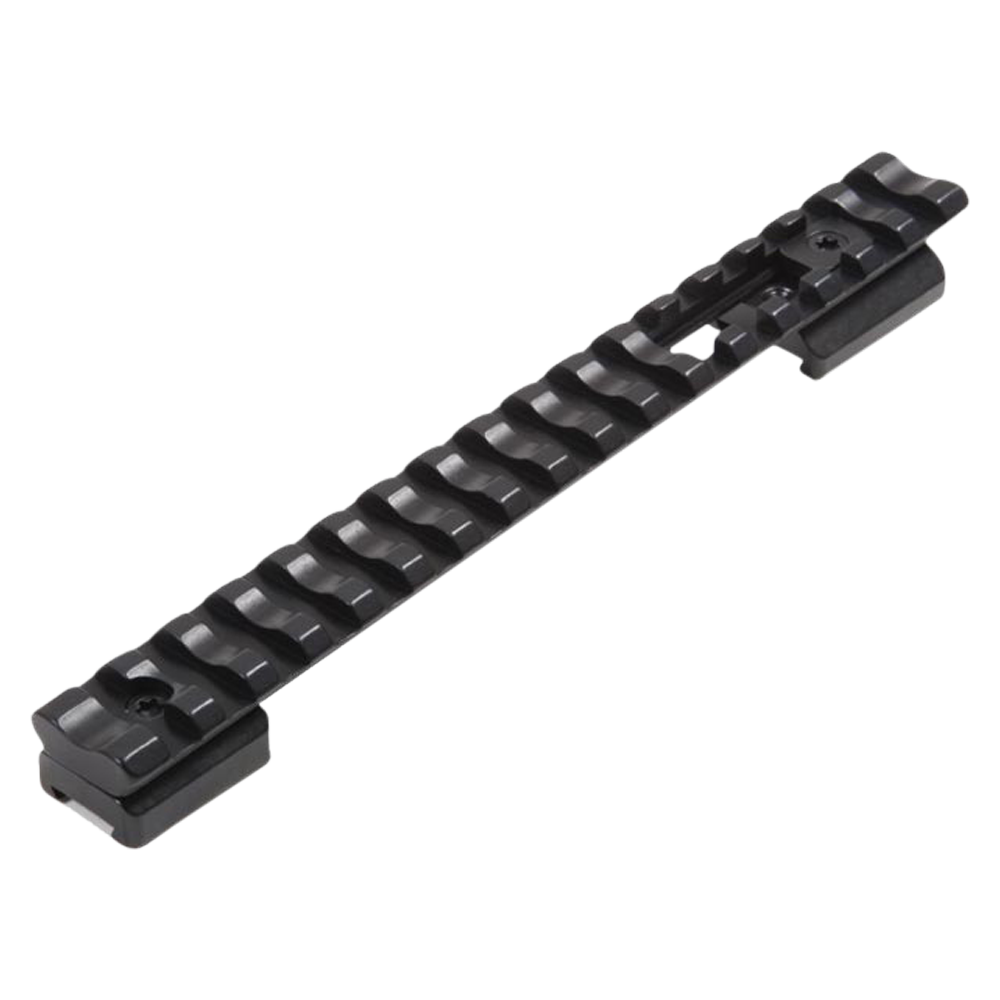

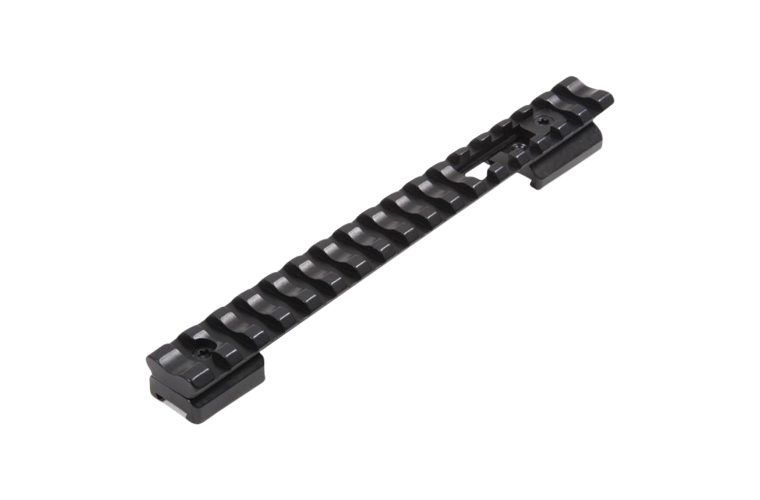

Recknagel Sako 75/85 M & L Picatinny Rail

Recknagel Sako 75/85 M & L Picatinny Rail

ID: 57050-0114

Your Price:

FIND A DEALER>

Register or Login for Stock Availability.

Recknagel Aluminium Picatinny Rail for Sako 75/85 Long
Black anodised

Will fit Sako 75 / 85 / MA05 / IV / V / MA05 / M / L
Rail Length: - 180mm
Height of Base - 12.5mm
Weight: - 94g

Contents Supplied
- 1x Black Anodised Rail

To mount the rail, separate the rail from the tapered bases. Push the bases onto the Sako receiver and tighten the two vertical locking grub screws to hold in the bases in place. Remount the rail onto the bases.

Dimensions of Adjustments:
The Rail Length is 160mm
Bases Length: 21mm
Bases Center to Center: Adjustable from 111mm to 143mm
Distance Between Bases: Adjustable from 82mm to 113mm

Recknagel Sako 75/85 M & L Picatinny Rail
Symbol 57050-0114
Description Recknagel Sako 75/85 M & L Picatinny Rail



Recknagel Aluminium Picatinny Rail for Sako 75/85 Long
Black anodised

Will fit Sako 75 / 85 / MA05 / IV / V / MA05 / M / L
Rail Length: - 180mm
Height of Base - 12.5mm
Weight: - 94g

Contents Supplied
- 1x Black Anodised Rail

To mount the rail, separate the rail from the tapered bases. Push the bases onto the Sako receiver and tighten the two vertical locking grub screws to hold in the bases in place. Remount the rail onto the bases.

Dimensions of Adjustments:
The Rail Length is 160mm
Bases Length: 21mm
Bases Center to Center: Adjustable from 111mm to 143mm
Distance Between Bases: Adjustable from 82mm to 113mm
