Grizzly Brake Eliminator SS M14x1P

ID: GESM14X1P
$290.00 (Inc GST)
Tikka, Sauer 100XT, Bergara B14, Franchi Horizon, pre 2018 model Lithgow
Share
IN STOCK

Overview

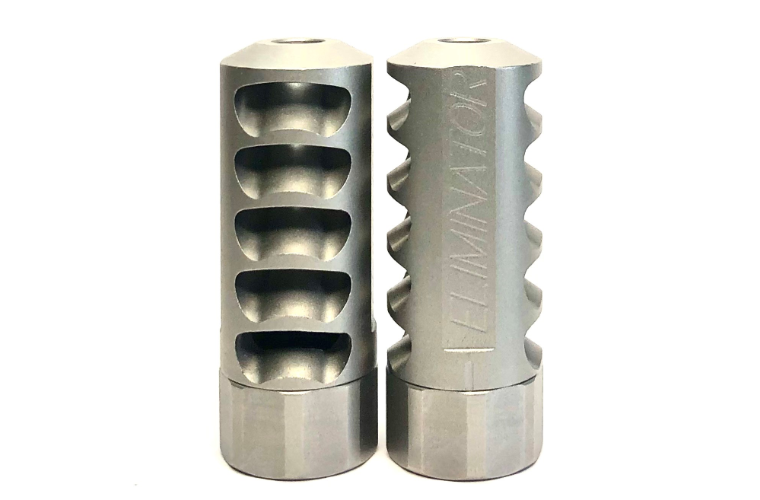

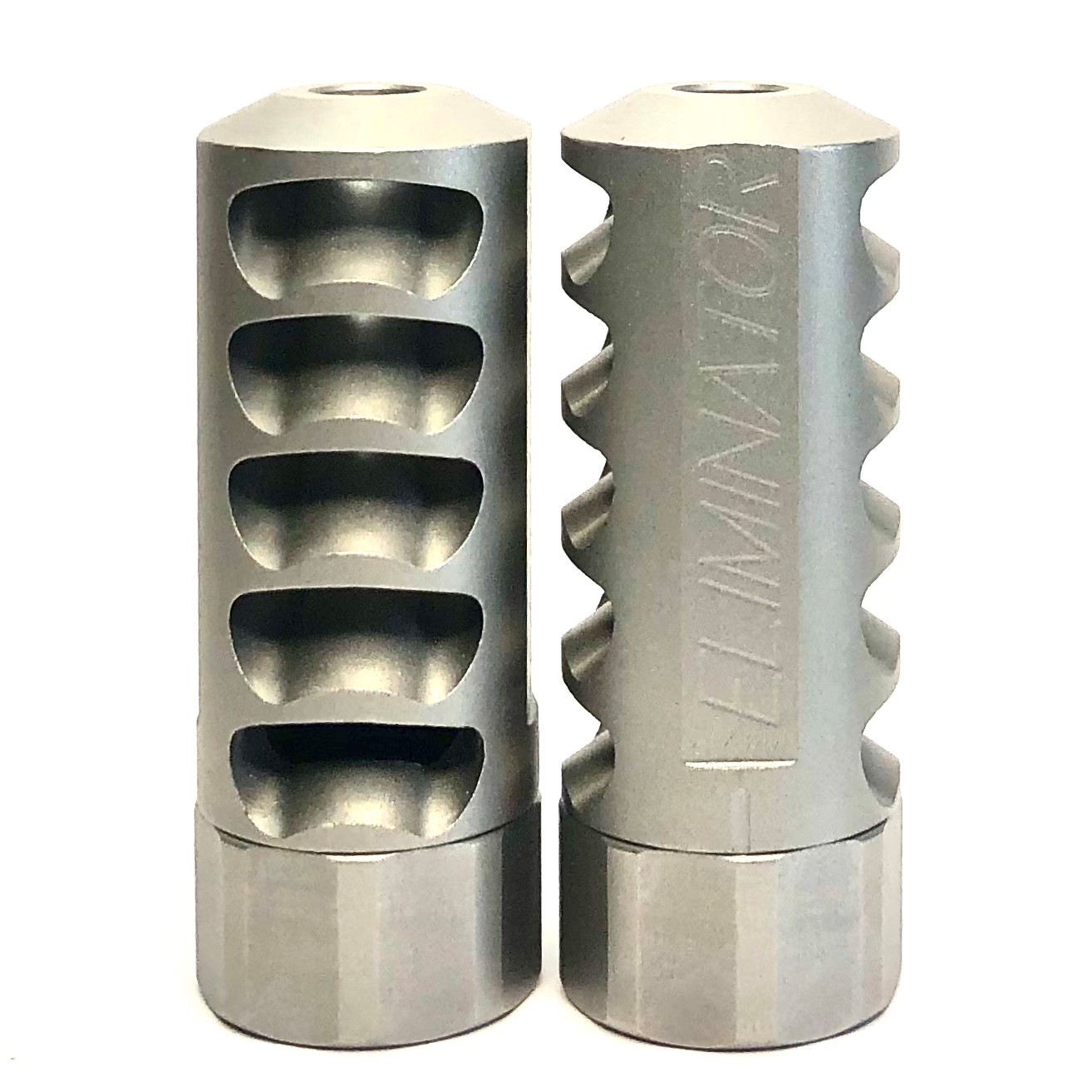

Designed for calibres up to .30cal. These brakes are easy to install with no gun smithing required. Specifically manufactured to fit onto the factoryT3X Tikka, T3X Strata, Sauer Classic 100XT, Bergara B14 sporter, Pre 2018 Lthgow, Franchi Horizon, Haenel semi varmint sporter and any gun with a M14 thread and with a shoulder no larger than 21mm OD. .

Installation::

The only required tool is a small shifting spanner.

  1. First screw the locknut all the way onto your Grizzly Eliminator Brake.
  2. Take your Eliminator Brake and screw it on all the way to the shoulder of the firearm, taking care not to cross thread the muzzle brake.
  3. Turn it back anticlockwise to the 11.55 position or thereabouts making sure that the vents are sitting almost horizontal to the barrel.
  4. Hold the brake firm in the 11.55 position and with your free hand turn the locknut clockwise until it goes no further.
  5. Hold the firearm firmly, and with the aid of the shifter, grab onto the flats of the brake and turn it clockwise until its nice and tight.
  6. Be sure to check that its aligned square to the barrel and if necessary, repeat these steps to get it right.
  7. Once tightened firmly, your muzzle brake is ready for use. After firing three shots check that it's still holding nice and firm.

Features

  • Dimensions: 71.45mm (2.812in) L, 22.50mm (0.885in) D, 22.10mm (0.87in) Lock nut Diameter
  • Weight: 102 grams (3.6oz)
  • Finish: Stainless
Download Product Manual
